CORAL

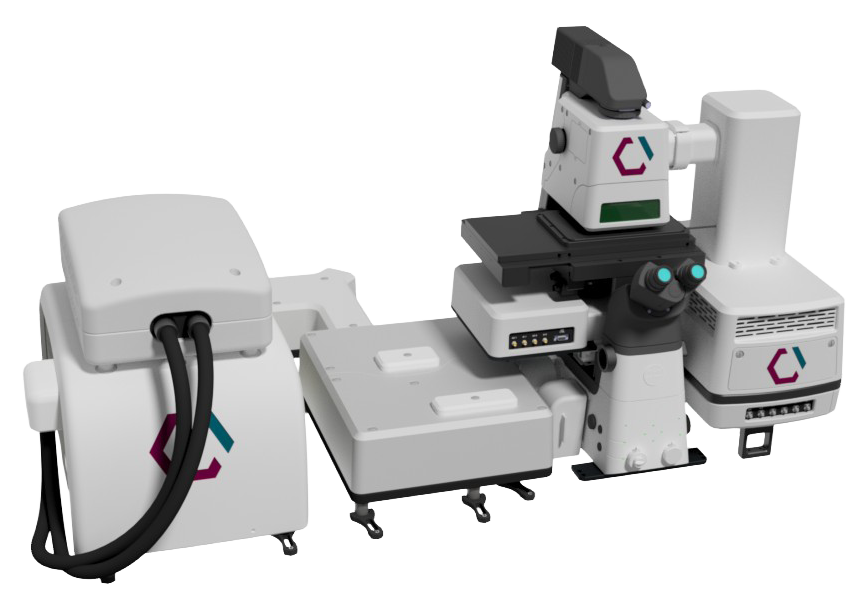

CORAL (COherent RAman pLatform) offers unparalleled chemical specificity at the sub-cellular resolution through a multimodal, label-free imaging platform designed to meet the diverse needs of modern biological research. Leveraging broadband stimulated Raman scattering (SRS) in the CH-stretching region (2800 – 3100 cm⁻¹), CORAL captures high-resolution images with exceptional clarity.
![CORAL_24061nobackground](https://www.cambridgeramanimaging.com/wp-content/uploads/2024/07/CORAL_24061nobackground.png)
OUR TECHNOLOGY
Multimodal label-free sub-cellular resolution imaging platform for spatial biology
CORAL is powered by our unique-on-market broadband coherent Raman technologies, STRALE and CHAMP, setting a new standard in imaging technology. These proprietary innovations enable CORAL to deliver superior imaging performance, ensuring that your research benefits from the most advanced tools available in the market today.
KEY FEATURES
Versatile and adaptable for all research needs
- Inverted transmission multimodal Coherent Raman microscope.
- Broadband stimulated Raman scattering in the CH-stretching region.
- Strip mosaicing laser scanning for fast large-scale image reconstruction
- Flexible field-of-view selection, time lapse, Z stack.
- Compatible with multiple sample preparations and holders (hydrated cells, all tissues, on coverslip, petri dishes and glass slides).
- Turnkey, compact and user-friendly platform.
- Powered by unique-on-market broadband coherent Raman technology – STRALE and CHAMP.
Specs | Perfomance |
Minimum pixel size | 250 nm |
Minimum pixel dwell time | 2 μs |
Imaging speed | 500 nm/μs |

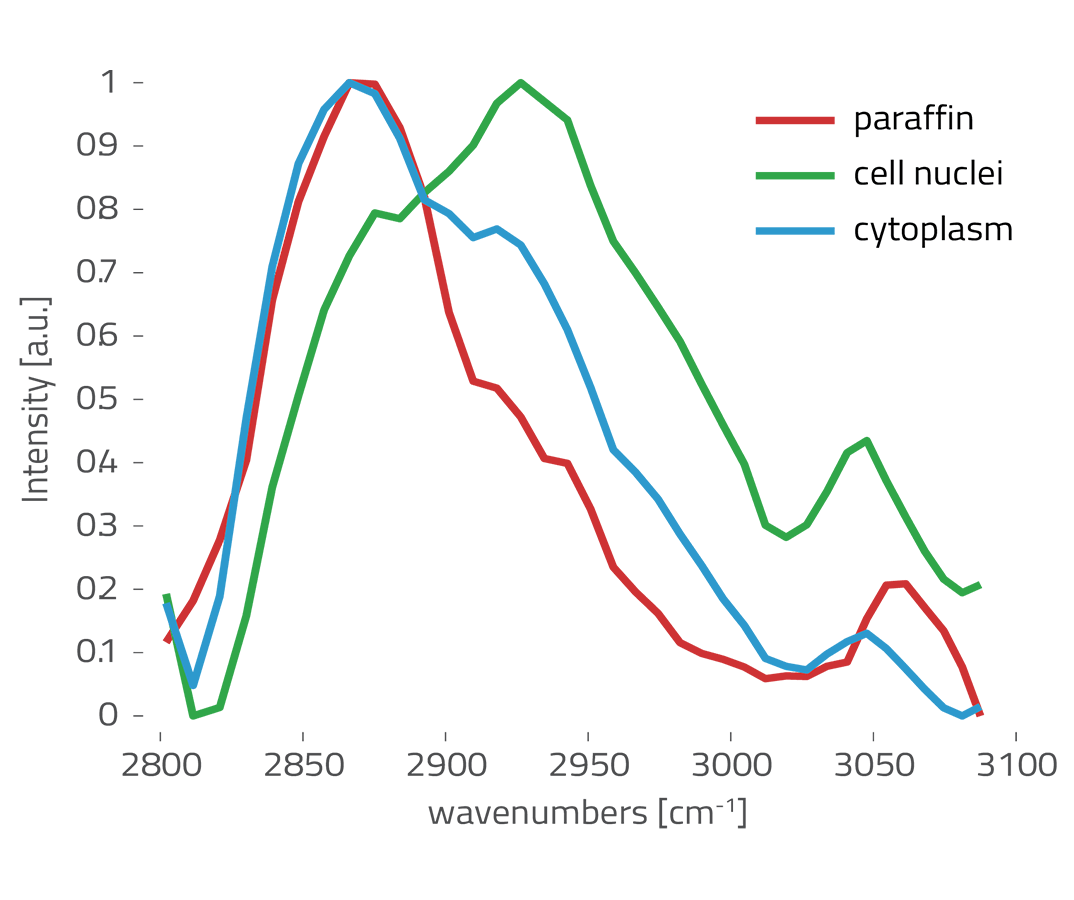

Raman spectral coverage | 2800 - 3100 cm⁻¹ |
Raman spectral resolution | ≤ 16 cm⁻¹ |
Other imaging modalities | TPEF, SHG (EPI) |
Acquisition modalities | Z-stack, Time-lapse, Live |
Software | CRI MicroGUI |
APPLICATIONS
One device – all the chemistry you need from your samples
![cri-website-cytology](https://www.cambridgeramanimaging.com/wp-content/uploads/2023/10/cri-website-cytology.png)
![cri-website-histology](https://www.cambridgeramanimaging.com/wp-content/uploads/2023/10/cri-website-histology.png)
![cri-website-research](https://www.cambridgeramanimaging.com/wp-content/uploads/2023/10/cri-website-research.png)
Statements about future products represent management intentions, but are not to be considered commitments to any specific clinical or non-clinical capability or performance targets.
